商品の詳細:
|
|
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | KERSTERN |
| 証明: | ISO9001 |
| モデル番号: | 6000シリーズ KM6B |
|
お支払配送条件:
|
|
| 最小注文数量: | 1台のパソコン |
| 価格: | According to order quantity |
| パッケージの詳細: | カートンと木箱 |
| 受渡し時間: | 7営業日 |
| 支払条件: | T/T、L/C、ウェスタンユニオン |
| 供給の能力: | 10000個/月 |
|
詳細情報 |
|||
| モーターの種類: | 軌道モーター | 状態: | 新しい |
|---|---|---|---|
| 使用法: | 掘削装置、掘削機 | 輸送パッケージ: | 木箱/ダンボール箱 |
| 塗布機: | ミニショベル/除草機/ゴミ収集車 | 転流: | ブラシ |
| ハイライト: | Hydraulic wheel motor with shaft seal,Low start up pressure hydraulic motor,Heavy machinery hydraulic wheel motor |
||
製品の説明

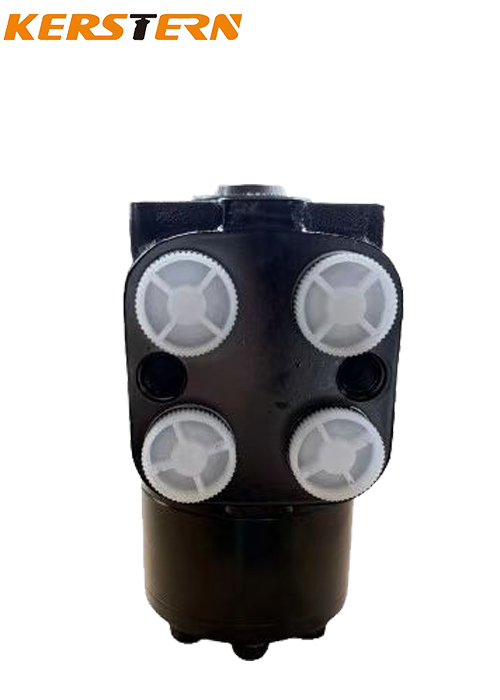

KM6B Brake motor
KM6B motor is KM6 brake motor with multi-disc brake that is released by a hydraulic pressure ,and has good brake performance ,the motor has same work performance as BM6 when the brake is released.
Note
1. Don’t work over the max pressure
2. The drain port must be connected to the return circuit
3. Don’t brake when the motor is dynamic status
4. If the system has pilot pump,use pilot oil to open the brake, otherwise , the working pressure don’t exceed 150 bar
5. The oil temperature don’t exceed 80℃
6. Oil recommended: Anti-wear hydraulic oils , viscosity at least 13cSt in working
Main Specification
| Displacement | 195 | 245 | 310 | 395 | 490 | 625 |
| (ml/r) | ||||||
| Release pressure | 25 | 25 | 25 | 25 | 25 | 25 |
| (bar) | ||||||
| BrakeTorque (NM) <=800 | <=800 | <=800 | <=800 | <=800 | <=800 | |
| Max pressure (bar) | 205 | 205 | 205 | 205 | 170 | 140 |
| Max Flow(LPM) | 150 | 150 | 150 | 150 | 150 | 150 |
Applications
These motors can be used in industrial machines (e.g. conveyors), mining machinery (e.g. drills, winches), working machines (e.g. bulldozers, crushers) and in shipbuilding industry (e.g. control systems, propellers) etc.
Advantages
1. Low start-up pressure;
2. Shaft seal can bear high back pressure;
3. The motor can be used in parallel or series configuration;
4. Distribution system can meet the requirements of low noise units;
5. Compact volume and easy installation;
6. High torque.
Packing:
1. who are we?
We are based in Jining China, start from 2003
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Hydraulic motor
4. How long is the Warranty?
One-year warranty.
5. What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% beofre shipping.
6. How about the delivery time?
Normal Models within 2 days, unusual models and bulk order within 5-10 days.
